wiki-knowledge

Architecture

Point-in-time snapshot of the wiki-knowledge plugin’s script layer, agents, and skills, as of plugin version 0.8.2. This is not maintained on every change — treat it as a map from roughly now, not a live contract. If it disagrees with the code, the code wins.

The script layer is a single TypeScript implementation at enchiridion-ts/ (enchiridion, one subcommand per capability), bundled by esbuild and invoked through wiki-plugin/bin/enchiridion — a POSIX-sh entrypoint that execs node against the bundle (ADR-0017). The names in these diagrams are TypeScript modules under enchiridion-ts/src/.

Diagrams:

1. Module dependency graph — how enchiridion-ts/src/* depends on each other, clustered by responsibility.
2. Skill → agent → cluster flow — how each of the plugin’s five slash-command entrypoints reaches the code in diagram 1.
3. Type diagrams by cluster — one diagram per cluster from (1), sketching its types and module-level functions.

Two seams worth keeping straight, since the diagrams show them:

• The Vault has no search-index facade. searchindex depends only on vaultgit (blobs, dates) and otherwise walks the wiki tree itself, so proxying back through vault would be an import cycle; there are no facade methods on Vault. Callers that need to search open a searchindex.Index directly, as enchiridion search does. Since ADR-0015, searchindex’s centre of gravity has been vaultgit: page content and dates come from VaultGit.CommittedPages (git blobs), and Status()’s on-disk-vs-indexed count is computed internally by counting wiki/**.md files on disk.
• There is no ForRoot per-root cache. Open/Close make the connection lifetime explicit, and everything below the CLI command takes a discover.Searcher rather than a vault root (ADR-0010).

How this stays current. The redraw keeps the diagrams hand-drawn rather than generated, and the opening warning stays honest about that. Mechanical generation was weighed and set aside: a tool could emit the raw import graph, but the value of this file is the responsibility clustering and the reasoning about the seams — the parts tooling cannot produce. The type diagrams are kept for the same reason: they are the cheap, nameable API contract of each module, and a reader who finds a stale method name is told to trust the code. The cost is the warning above: the next structural change to the module set should touch this file again.

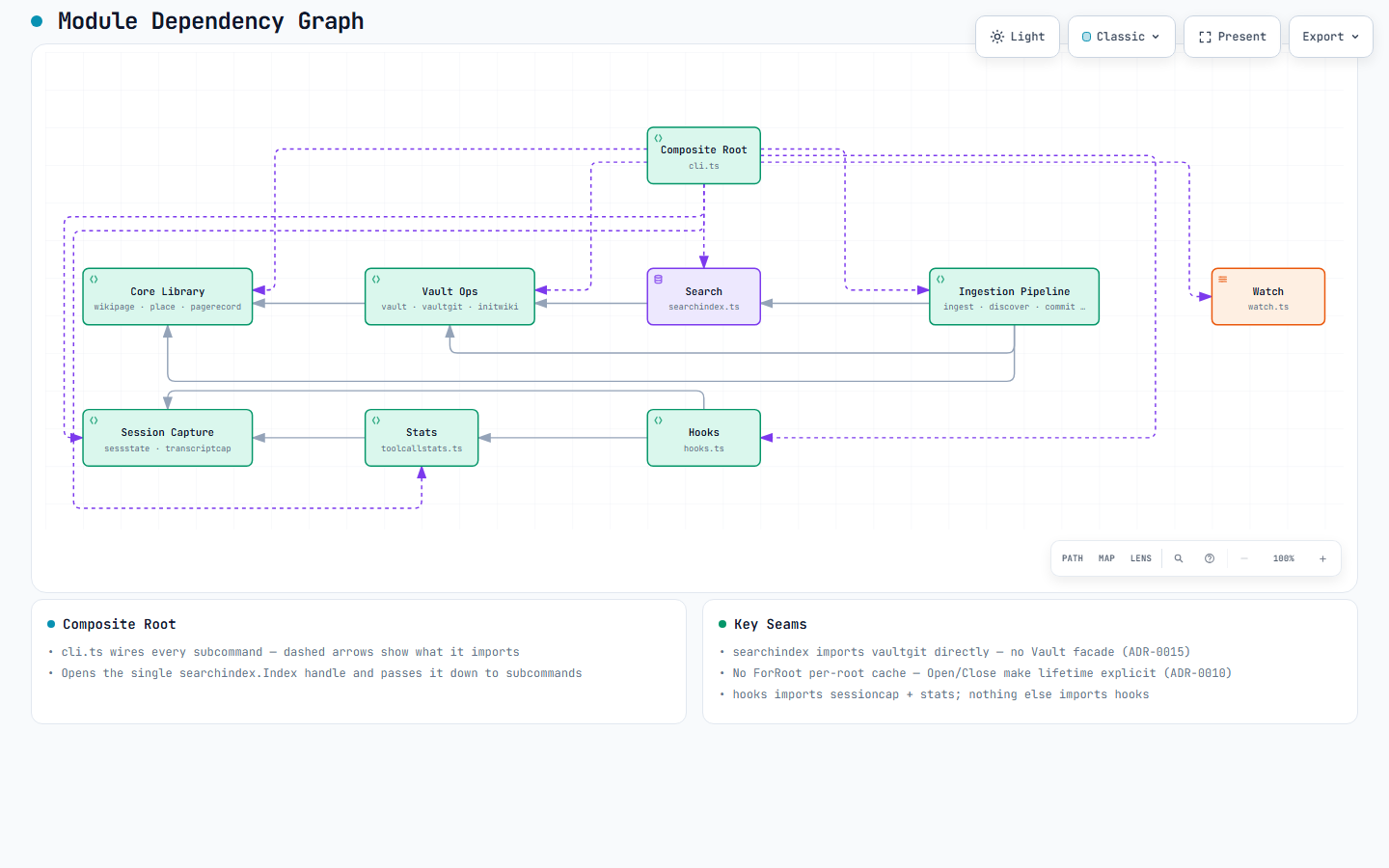

Module dependency graph

Modules are grouped into responsibility clusters. An arrow between clusters means at least one module in the source cluster imports at least one module in the target cluster; individual module-level imports are collapsed for readability (see each cluster’s file list for exact contents). The dashed arrows from the composite root are cli.ts importing every cluster — it is the composition root, one commander file per subcommand, and the wiring of every subcommand passes through it.

Cluster contents:

• Core library — wikipage.ts (the pure page model: Page get/set/merge/retarget, link machinery — IterLinks, PercentEncode/PercentDecode, PlanMove; no I/O), place.ts (kebab-slug + kind-folder path computation; KindFolders is the single source of truth), pagerecord.ts (frontmatter schema reader; derives kind from folder and superseded_by by inverting supersedes edges).
• Vault ops — vault.ts (the Vault I/O type — all reads/writes, cross-page MovePage/RewriteInboundLinks, and ResolveRoot), vaultgit.ts (sole git access, isomorphic-git), initwiki.ts (vault scaffolding for /wiki-init).
• Search — searchindex.ts (SQLite FTS5 index over node-sqlite3-wasm; Open/Close lifetime, ADR-0006/0010/0015 — a materialised view of HEAD’s committed wiki/ tree, watermarked in meta.git_head, not a working-tree scan).
• Ingestion pipeline — ingest.ts (the Plan/Resolved schema + Resolve→Validate→Execute executor), ingestscan.ts (raw/ sweep eligibility, ADR-0009 page_ref), ingestignore.ts (.ingestignore parse/append), discover.ts (overlap-candidate + tag-vocabulary lookup), chainofevidence.ts (page→stub→raw-file rule), commit.ts (structured git commit per manifest, gated by chain of evidence), supersededby.ts (supersession queries).
• Session capture — sessionstate.ts (session→transcript-path lookup under .claude/wiki-knowledge/sessions/), transcriptcapture.ts (JSONL→page rendering + the save-session writer).
• Watch — watch.ts (debounce, lock file, queue file; pure — no I/O beyond what callers hand it).
• Stats — toolcallstats.ts (summarizes a session’s hook-logged tool calls).
• hooks — hooks.ts (SessionStart/PostToolUse, the handlers for the hook subcommands). It isn’t imported by anything but cli; it runs as Claude Code hook events and writes the JSON state files Session capture and Stats later read. The hooks module imports sessionstate and toolcallstats directly, so those are real edges.
• Composite root — cli.ts, one file per subcommand (search, ingest, hook, vault, page, place, save-session, watch, tool-call-stats, superseded-by, commit, init, ingest-scan, discover, plus version). It resolves the vault root, opens the single searchindex.Index handle, and passes it down.

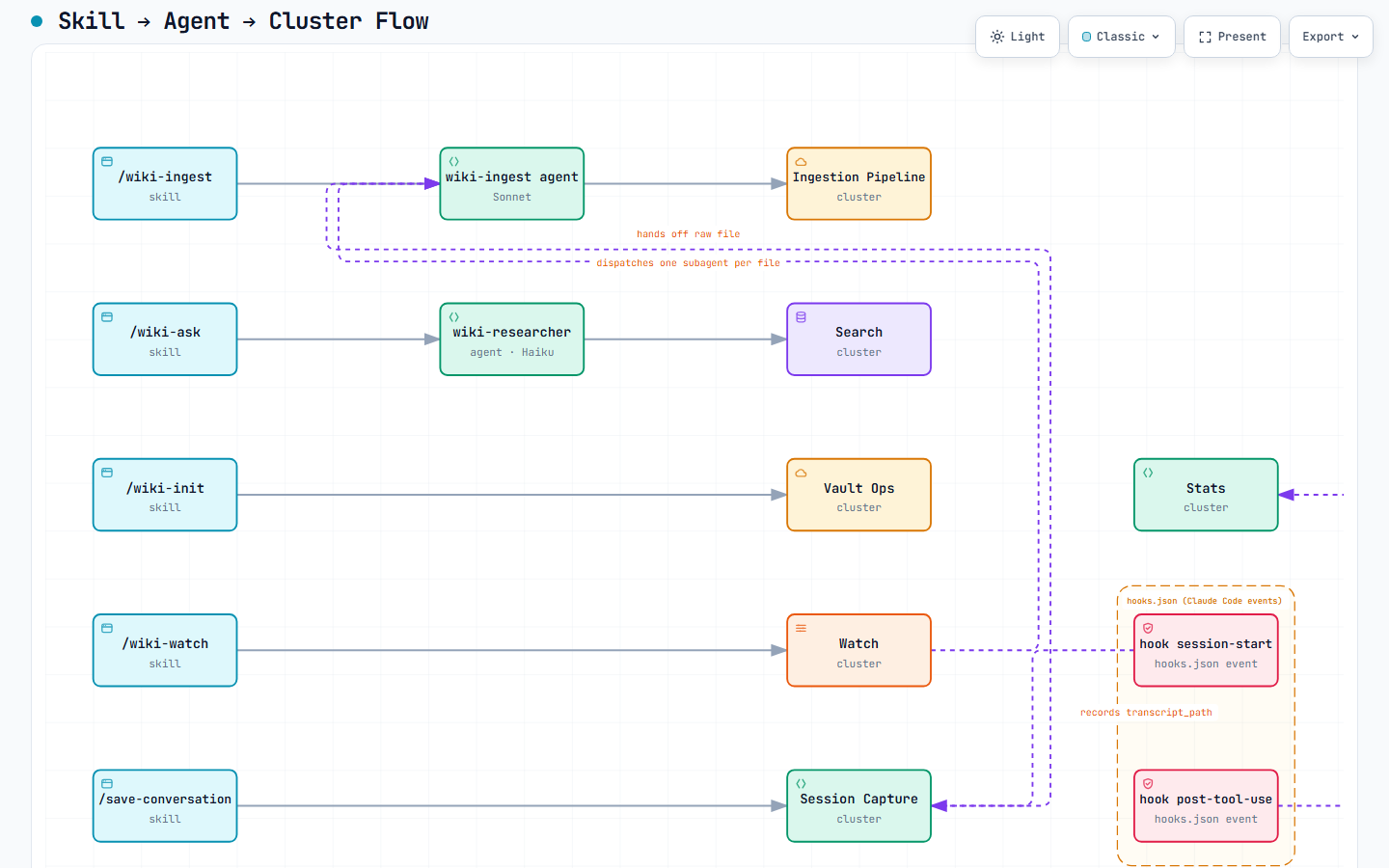

Skill → agent → cluster flow

Each of the plugin’s five skills, traced through its agent (if any) to the cluster(s) it drives. /wiki-watch and /save-conversation are dispatchers: both hand off into the /wiki-ingest flow rather than duplicating it. The hooks row shows the automatic path — hooks.json wires both events to bin/enchiridion hook <event>, and the state they write is what Session capture and Stats read.

Notes:

• /wiki-init calls enchiridion init directly (from initwiki.ts, using vault/vaultgit) — no agent involved, it’s pure scaffolding.
• /wiki-watch runs enchiridion watch (Watch cluster, the cli.ts watch subcommand — a chokidar observer over raw/ + the pure watch.ts debounce/lock/queue) with enchiridion ingest-scan (Ingestion pipeline cluster) as the eligibility check, then dispatches one wiki-ingest subagent per eligible/queued file — the same agent /wiki-ingest uses, not a separate copy.
• /save-conversation runs enchiridion save-session (Session capture cluster, the cli.ts save-session subcommand → transcriptcapture.CaptureSession) to write the raw transcript file, then delegates to the wiki-ingest agent to file it into the vault — again reusing the same agent and pipeline, not a parallel one.
• enchiridion hook session-start / hook post-tool-use (the cli.ts hook subcommand → hooks.ts) run as Claude Code hook events per wiki-plugin/hooks/hooks.json, not from a skill: SessionStart records the transcript path save-session later reads, PostToolUse appends one JSON line per tool call for enchiridion tool-call-stats. Both fail open (|| exit 0) — bin/enchiridion is a thin exec node <bundle> shim, so a hook failure degrades one session’s side effect rather than blocking session start.
• Clusters here are the same ones named in the module dependency graph above.

Type diagrams by cluster

One diagram per cluster from the module dependency graph. The modules’ types are shown as class boxes with their methods, and module-level functions as <<package>> boxes; interfaces are <<interface>>. Cross-cluster references are dashed and named after the target cluster.

Core library

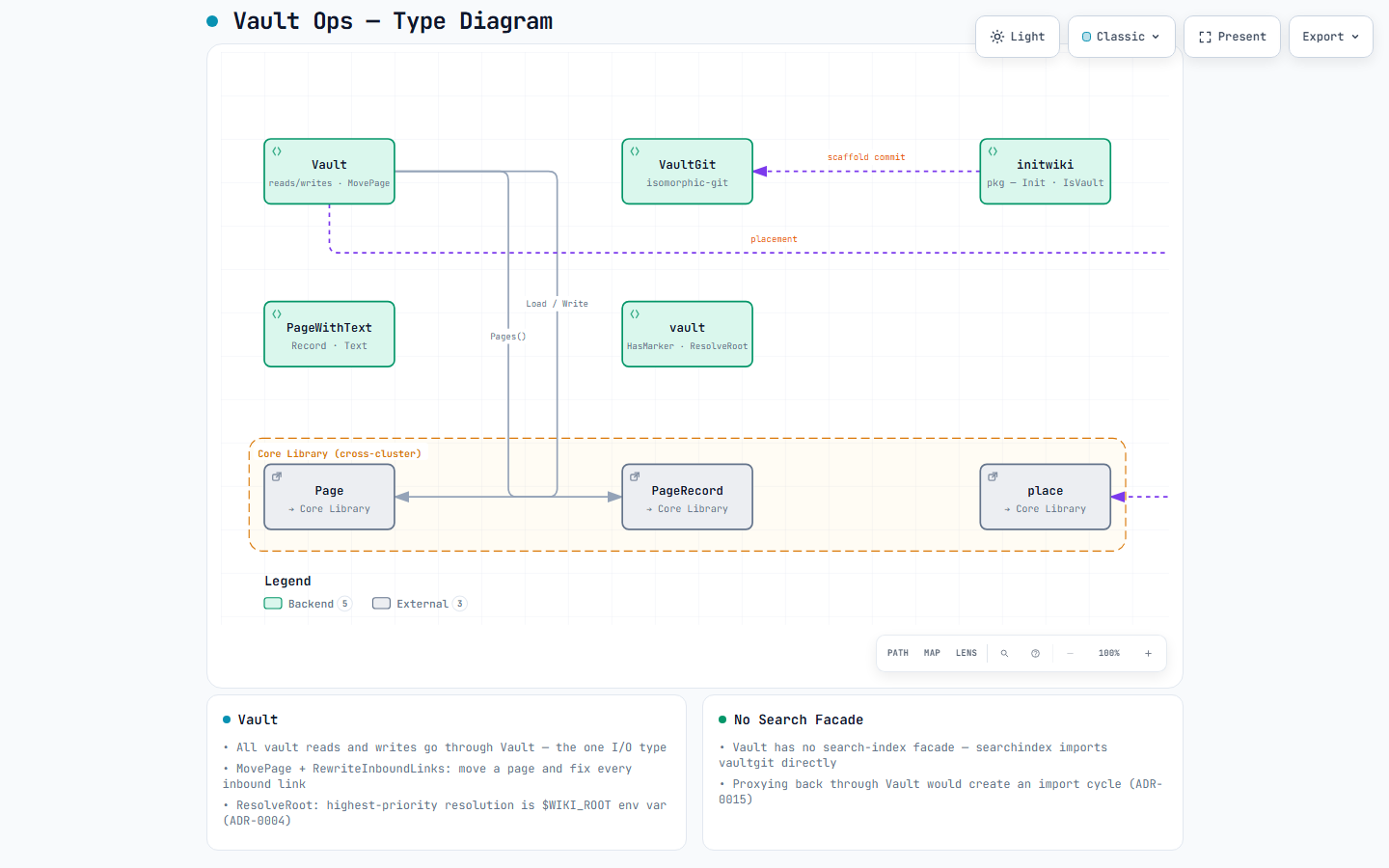

Vault ops

No SearchIndex relationship here on purpose — the first two seams note above: searchindex does not go through vault, so the old facade arrow is reversed (it imports vaultgit only), and enchiridion search opens the index itself.

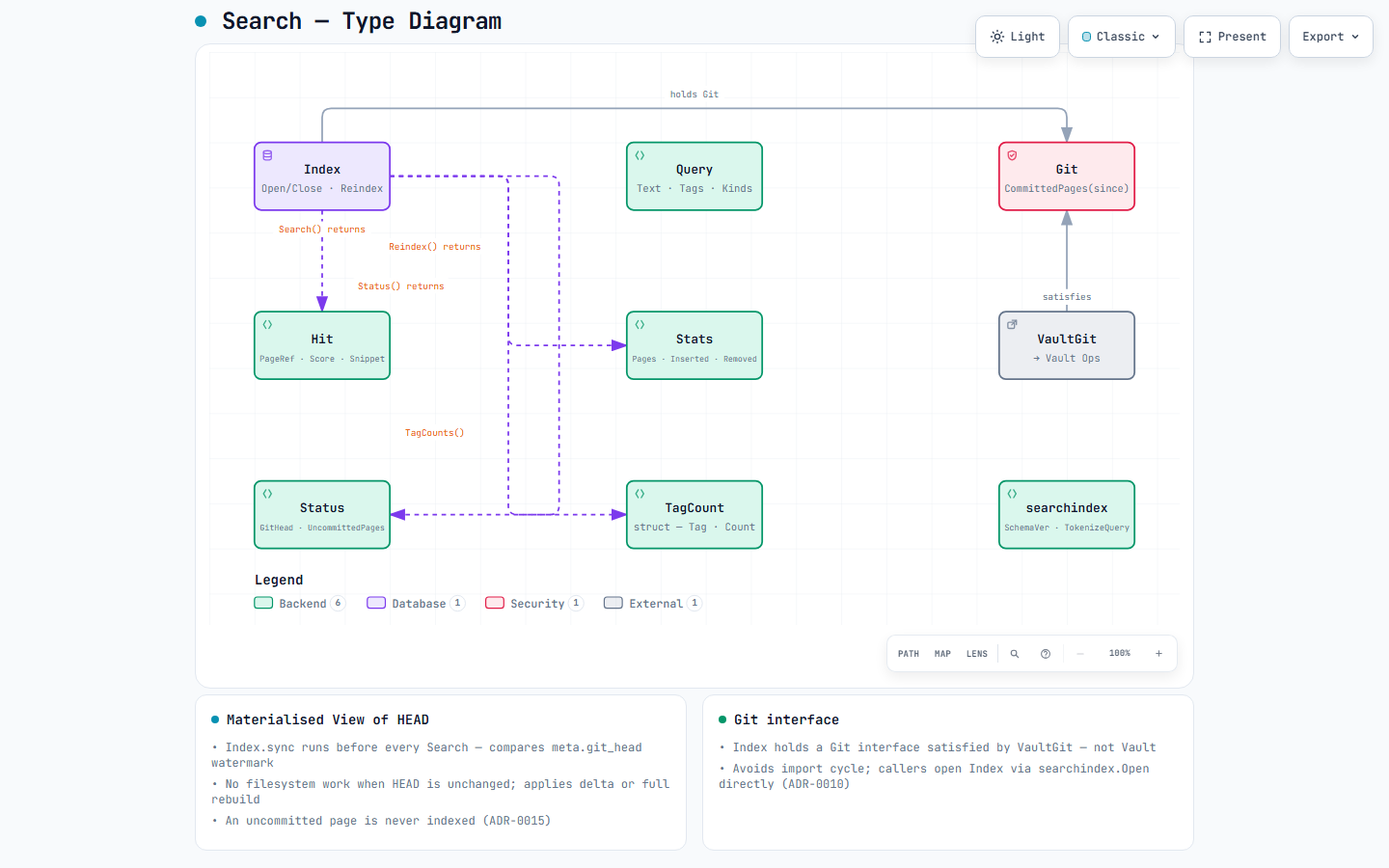

Search

Search correctness lives in Index.sync, which every Search and a bare --reindex run before matching: it compares meta.git_head (the watermark) against Git.CommittedPages(watermark)’s reported Head, and does nothing when they’re equal — one commit lookup, no filesystem work. When they differ, it applies the returned delta (or, on an unreachable watermark or a first build, a full rebuild from HEAD’s tree — ADR-0015) — so the FTS5 table can never go stale because a caller forgot an inline update, and a page that was never committed is never seen at all. There is no ForRoot per-root cache and no Vault facade (the two seams above): the CLI command opens the one Index via searchindex.Open, and passes it down as a discover.Searcher (ADR-0010).

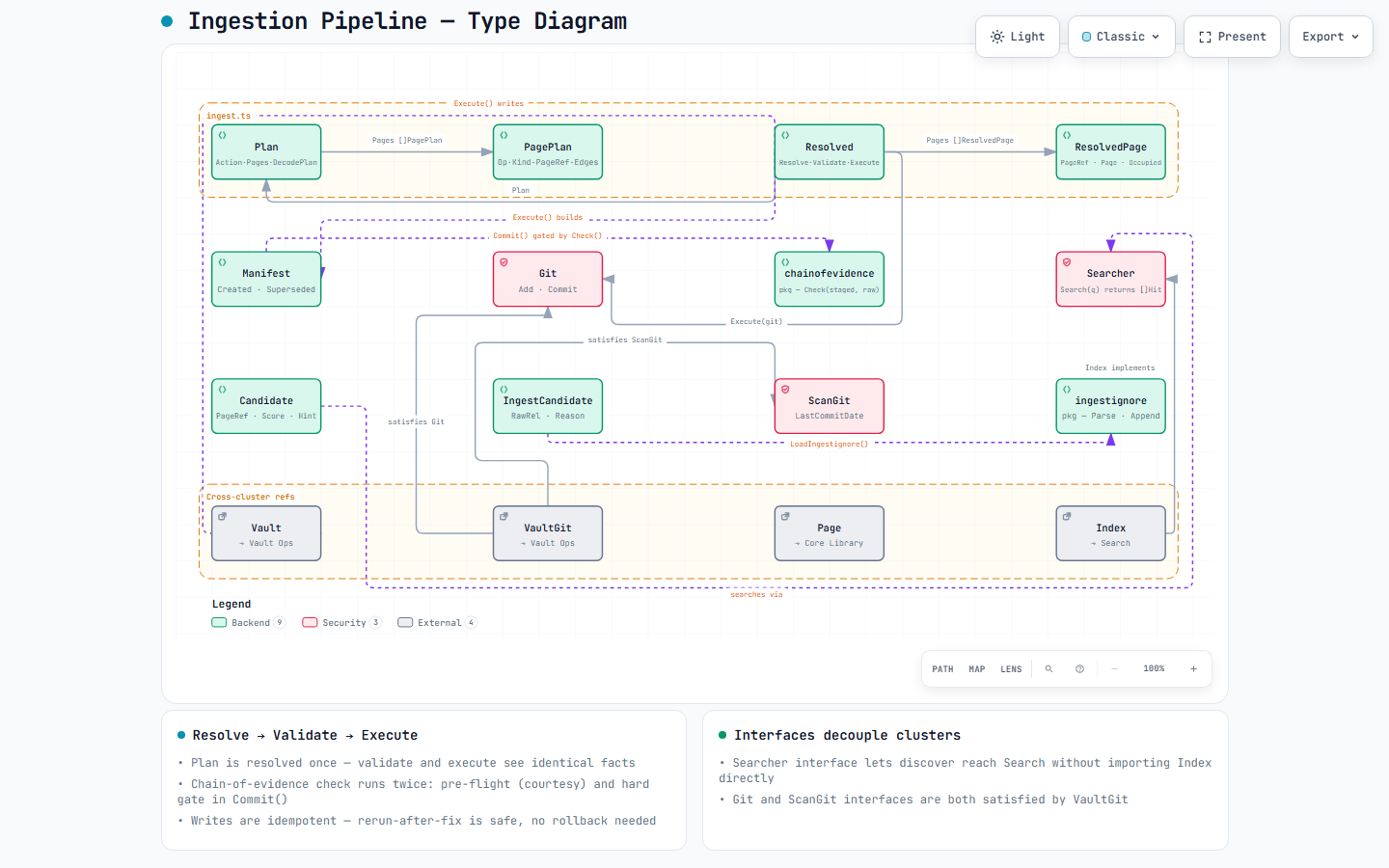

Ingestion pipeline

The pipeline is Resolve → Validate → Execute → commit; validation reads only resolved facts and execution writes only resolved pages, so the checked plan and the written plan cannot diverge. The chain-of-evidence check is run twice — pre-flight by validation (a courtesy) and again by commit.Commit as the hard gate — so a hand-built manifest can’t route around it. discover is the one place this cluster reaches into Search: Check classifies overlap candidates against the index via a Searcher, which is how cli’s single open Index reaches it without a vault root. Two types here share a name with another in the same diagram, so the ingestscan ones carry a prefix — IngestCandidate is ingestscan.Candidate (vs discover.Candidate above) and ScanGit is ingestscan.Git (vs commit.Git); the stereotypes name the real package either way.

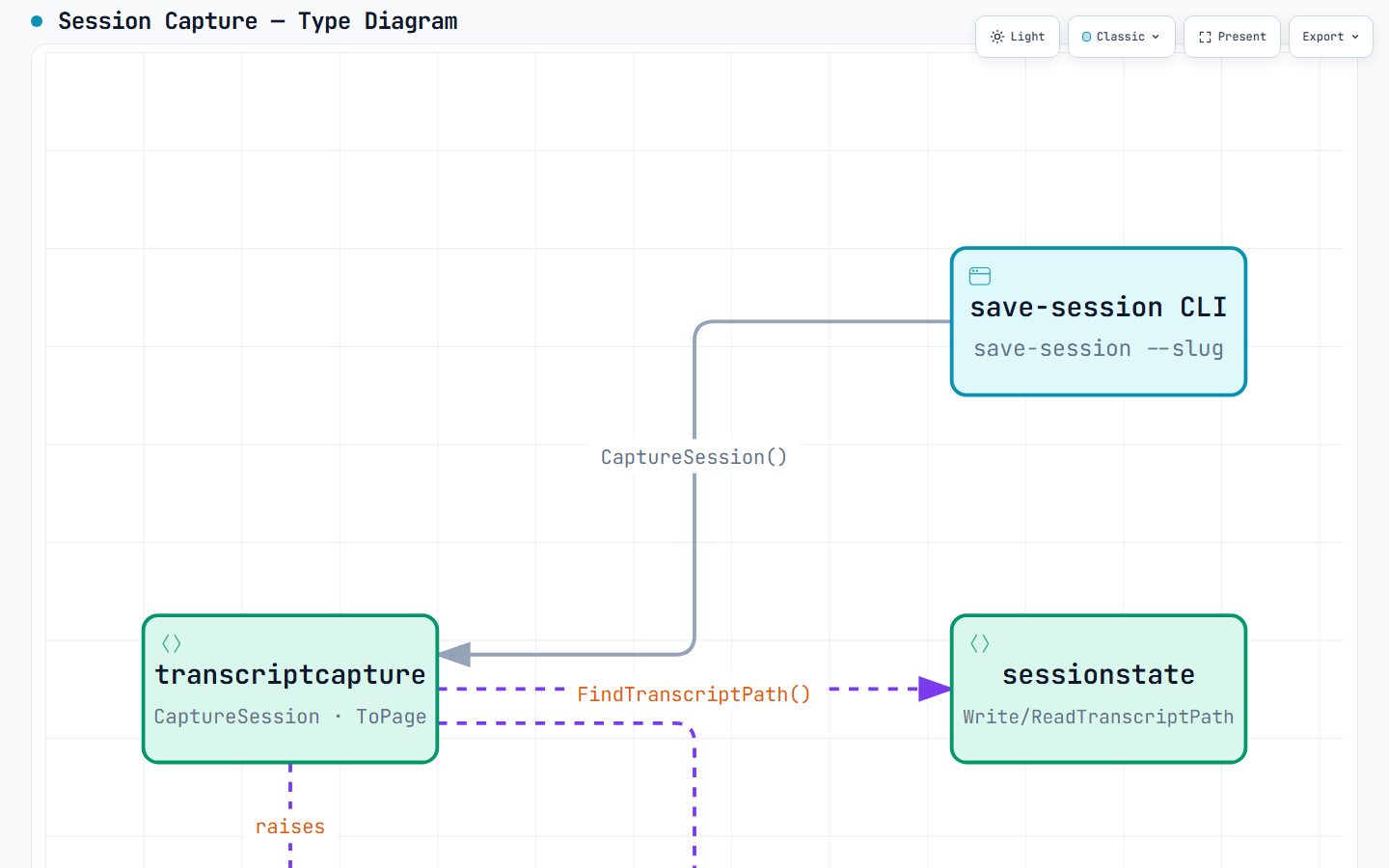

Session capture

enchiridion save-session reads the transcript path the SessionStart hook recorded (under .claude/wiki-knowledge/sessions/), renders the JSONL transcript to markdown, and writes raw/conversations/<YYYY-MM-DD-hhmm>-<slug>-<short-id>.md, printing the vault-relative path. Both the hook and the session-id environment the capture depends on are Claude Code surfaces. The code still carries an OpenCode adapter — $OPENCODE_SESSION_ID plus opencode export, tie-broken on tracker state — but nothing installs the session-tracker plugin that injected that variable since ADR-0026 retired the OpenCode wiring, so no current install path reaches it.

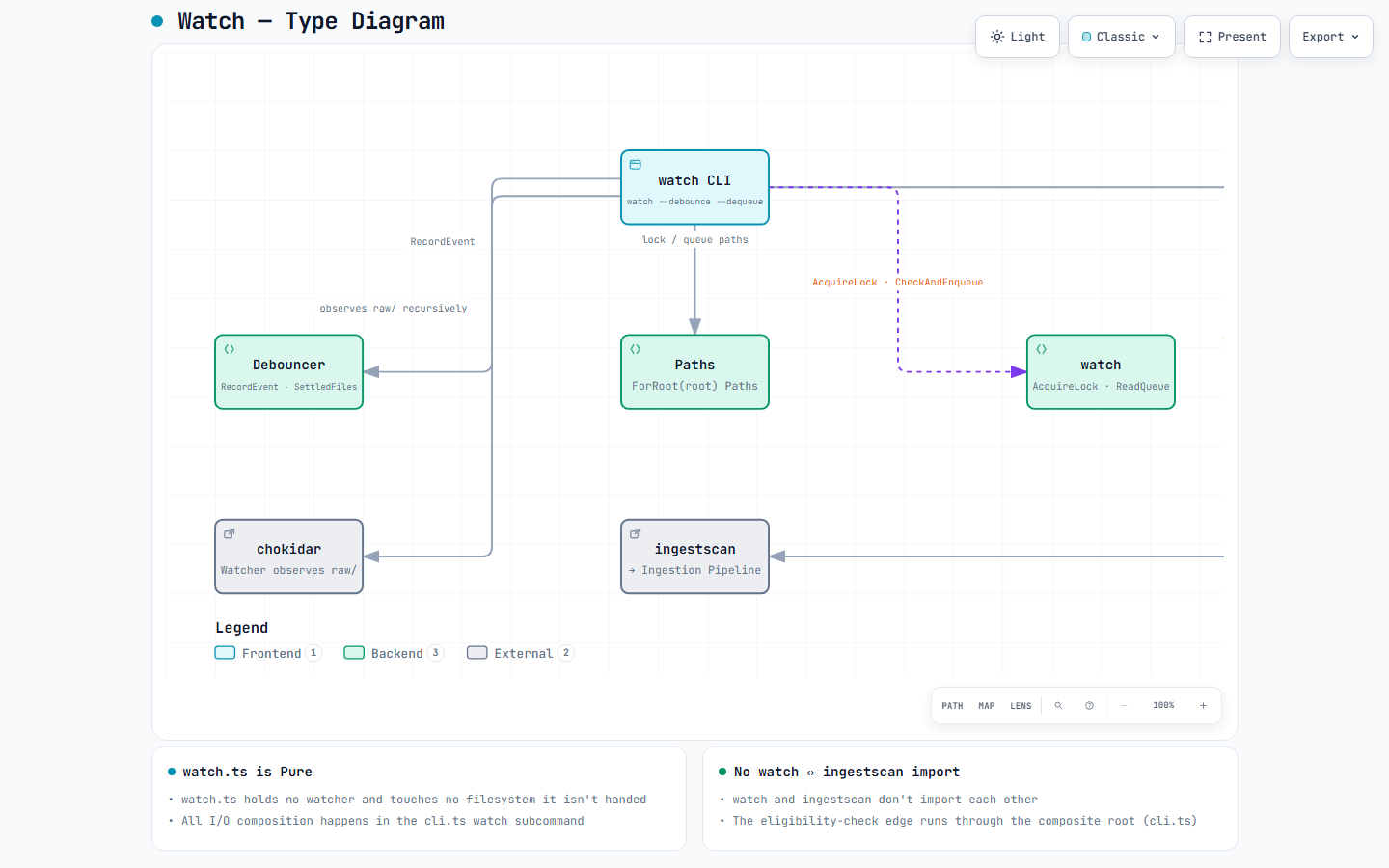

Watch

watch.ts itself is pure — it holds no watcher and touches no filesystem it isn’t handed. The cli.ts watch subcommand is where the composition happens: a chokidar observer feeds Debouncer.RecordEvent, a ticker drains Debouncer.SettledFiles(), and each settled file is queued only if ingestscan.Scan marks it eligible. watch and ingestscan don’t import each other; that edge runs through the composite root.

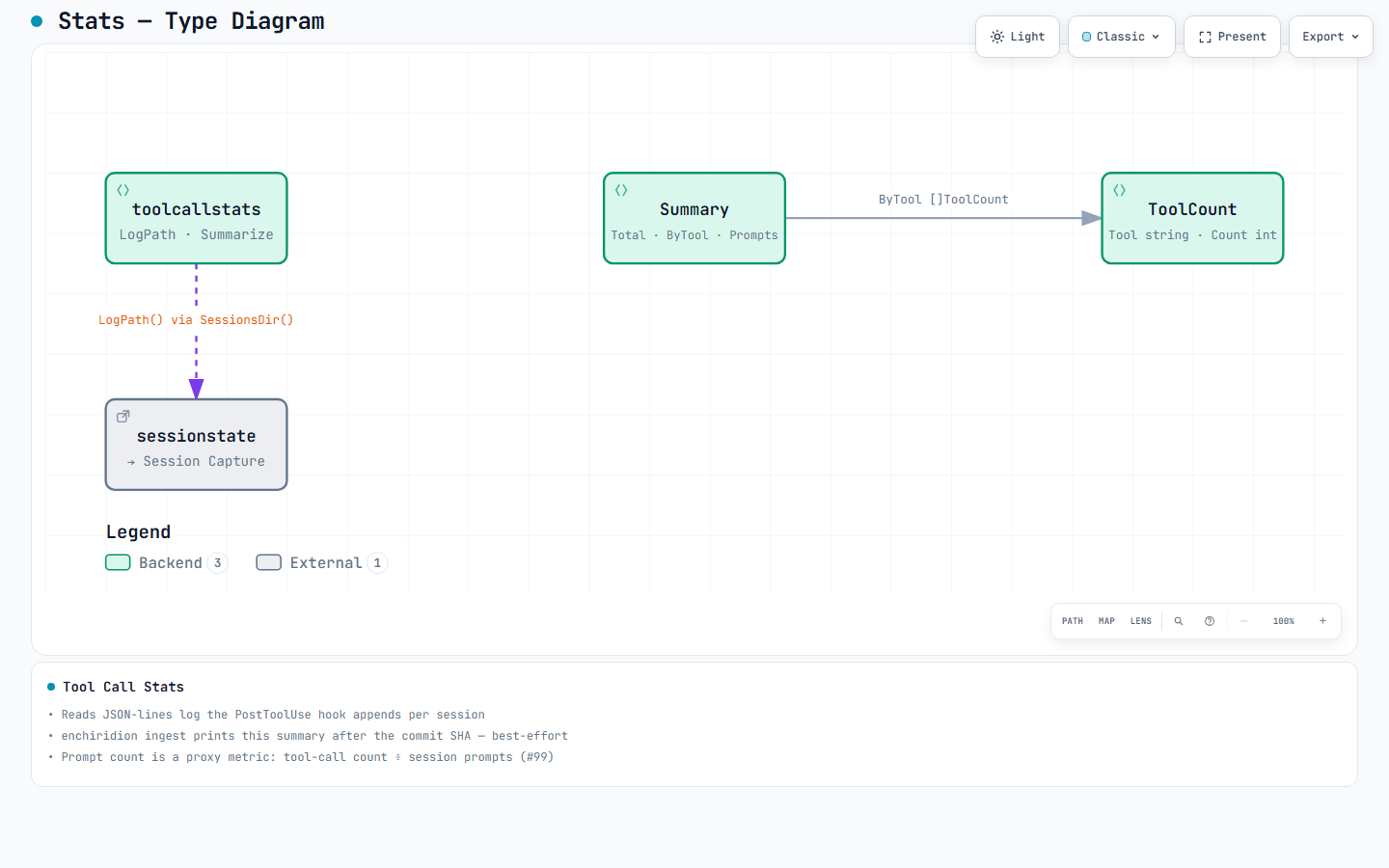

Stats

enchiridion tool-call-stats reads the JSON-lines log the PostToolUse hook appends to per session, and prints the per-tool histogram with the prompt-count proxy — tool-call count, not exact turn count, is the recoverable metric (#99). enchiridion ingest also prints the same summary after the commit SHA, best-effort and silent when no log exists.
